EL2 Series
Basic Tactile Switch for SMT

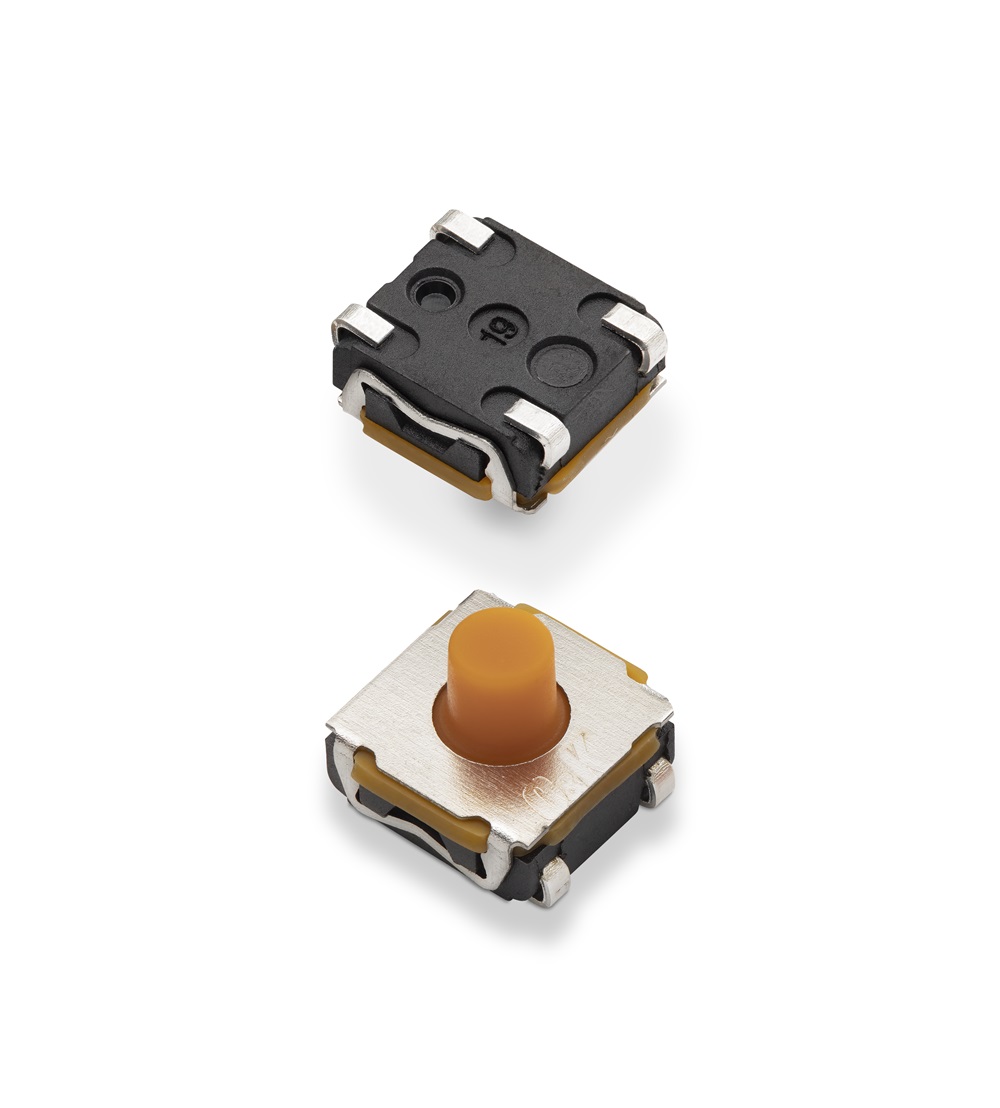

Tactile EL2 product image

Image shown represents the product series and may not indicate the actual part number

img description Toolbox
img description Downloads
Contact Tech Support
Search Distributor Stock
Request Sample
EL2 is the entry level series of mid-size sealed tactile switch. With 6.2 x 6.2 mm compact size and standard heights at 3.5 & 5.2 mm, EL2 Series offers the most common actuation forces with 2N & 3.5N versions. EL2 Series features basic characteristics with operating life at 200K cycles. The switches’ ruggedness and IP67 rating are mainly recommended for basic applications in industrial, consumer and medical markets when the best price/ performance compromise is sought.

Features and Benefits

  • 6.2 x 6.2 mm form factor
  • Heights 3.5 & 5.2 mm
  • Actuation forces 2 & 3.5N
  • IP67
  • Life expectancy 200K cycles

Typical Applications

  • Smart Meters
  • Home Appliances
  • Consumer Electronics
  • Industrial Electronics
  • Portable Medical Devices
  • 2-Wheelers

Specifications

  • Contact Rating:

    18V DC 150mA

  • Electrical Life:

    200000

  • Insulation Resistance:

    > 100 megohms

  • Dielectric Strength:

    > 250 Vrms

  • Operating Temperature:

    -40°C to 85°C

  • Contact Resistance:

    < 100 milliohms

  • Solderablity:

    Lead free reflow soldering process according with IEC61760-1

= Most Common

Compare Selected Parts
Part Number
EL2 52 20J LFS
EL2 35 35J LFS
EL2 52 35J LFS
EL2 35 20J LFS
Current Rating Circuit Mounting Type Sealing Illumination Switch Function Electrical Life Cycles Actuator Type Actuator Height off PCB, from Pins Actuator Orientation Termination Style Footprint Illumination Voltage (Nominal) Illumination Type, Color Operating Force Additional Features Packaging
150mA @ 18VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200,000 Soft 5.2mm Top Actuated SMT 6.2 mm x 6.2 mm x 5.2 mm 2N Tape & Reel
150mA @ 18VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200,000 Soft 3.5mm Top Actuated SMT 6.2 mm x 6.2 mm x 3.5 mm 3.5N Tape & Reel
150mA @ 18VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200,000 Soft 5.2mm Top Actuated SMT 6.2 mm x 6.2 mm x 5.2 mm 3.5N Tape & Reel
150mA @ 18VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200,000 Soft 3.5mm Top Actuated SMT 6.2 mm x 6.2 mm x 3.5 mm 2N Tape & Reel
